Cement Tensile Testing Machine
Ref. standard – EN-196-1
This Cement Tensile Testing Machine is primarily used to determine the tensile strength of briquette specimens of cement.
It can also be used to test the flexure strength of the sample. This test is commonly used by Cement Manufacturers in order to determine the quality of cement.
Capacity : 2kN & 10 kN
Loading speed of the single lever system : 10 +/- 2 N/Sec
Loading speed of the double lever system : 50 +/- 10 N/Sec
Flexure jaw diameter of the loading roller : 10mm
Supporting roller diameter : 10mm
Supporting roller distance : 100mm
Baffle plate span : 46mm
Suitable for operation on 220V, 50Hz, single phase, AC supply.

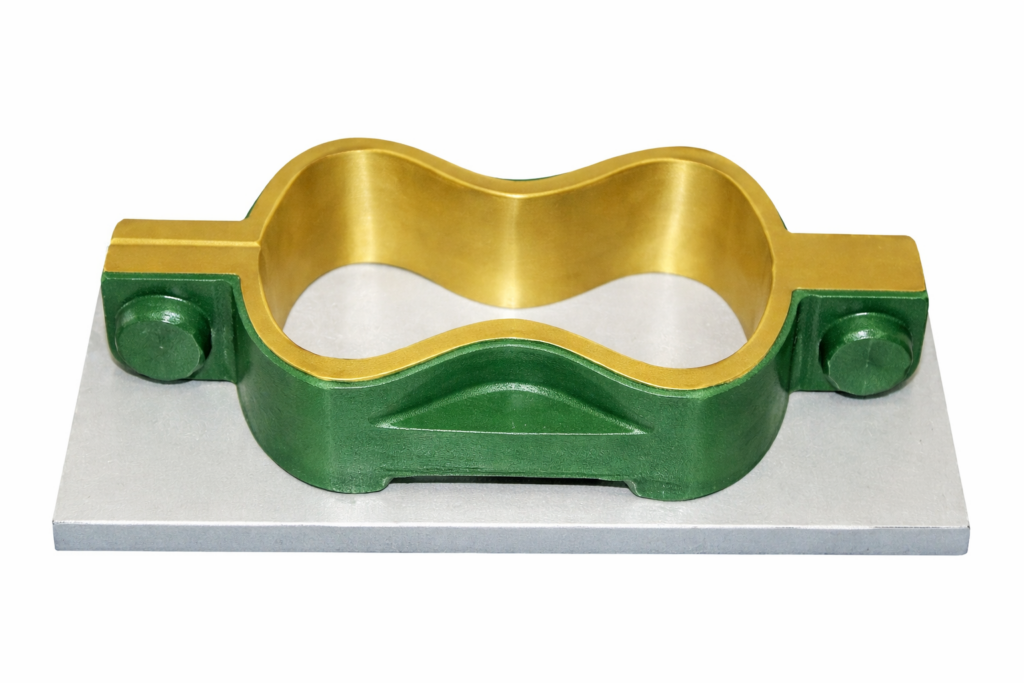

Briquette Mould (Single)
IS 269 1958, BS12
Specification:
For casting of cement briquettes for tensile strength tests. It is a two part split mould made of gun metal. Two thumb screws facilitate easy and quick assembling and dismantling of the mould. The minimum cross section of the briquettes cast is 25.4 mm x 25.4 mm. Supplied complete with a steel base plate.

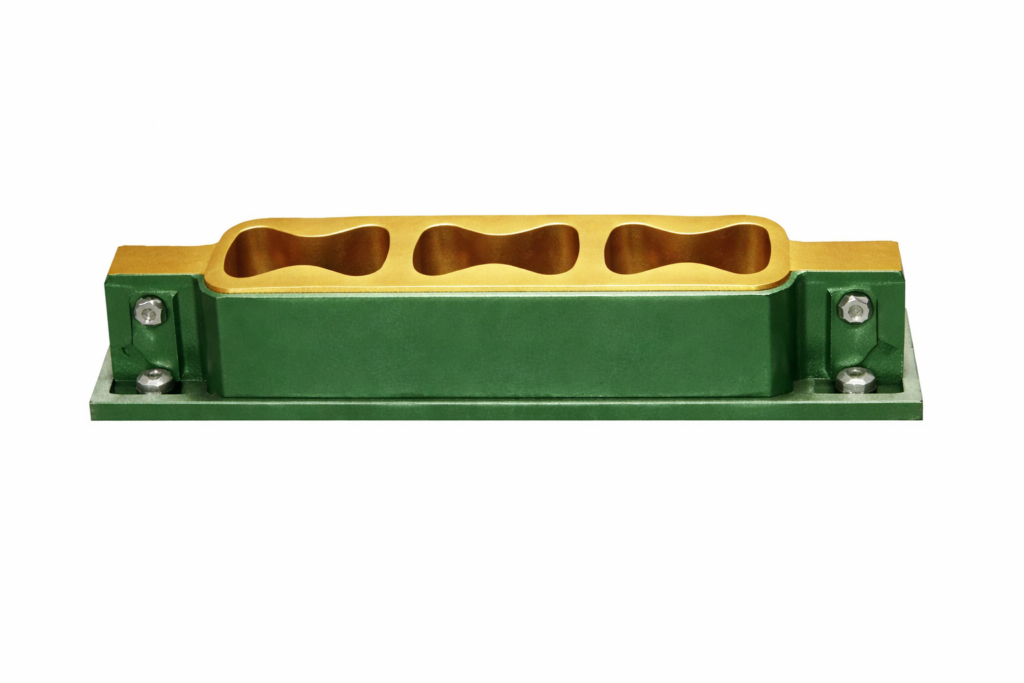

Briquette Mould (Three Gang)
IS 269 1958, Bs12
Specifications:
For casting three cement briquettes at a time for the tensile strength test on cement.

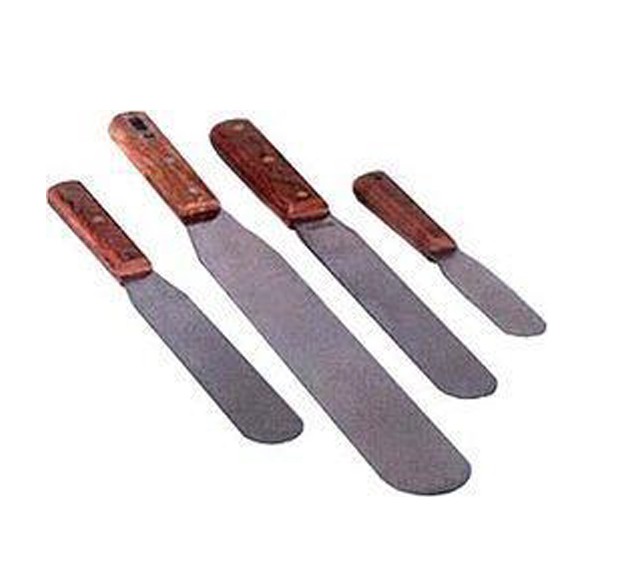

Standard Spatula
IS 4031, 269, BS 12
This is for use while casting a cement briquette.
Specification:
The standard spatula consists of a steel blade, of a special shape. A wooden handle is fixed to the stem of blade. The weight does not exceed 340 gms.
