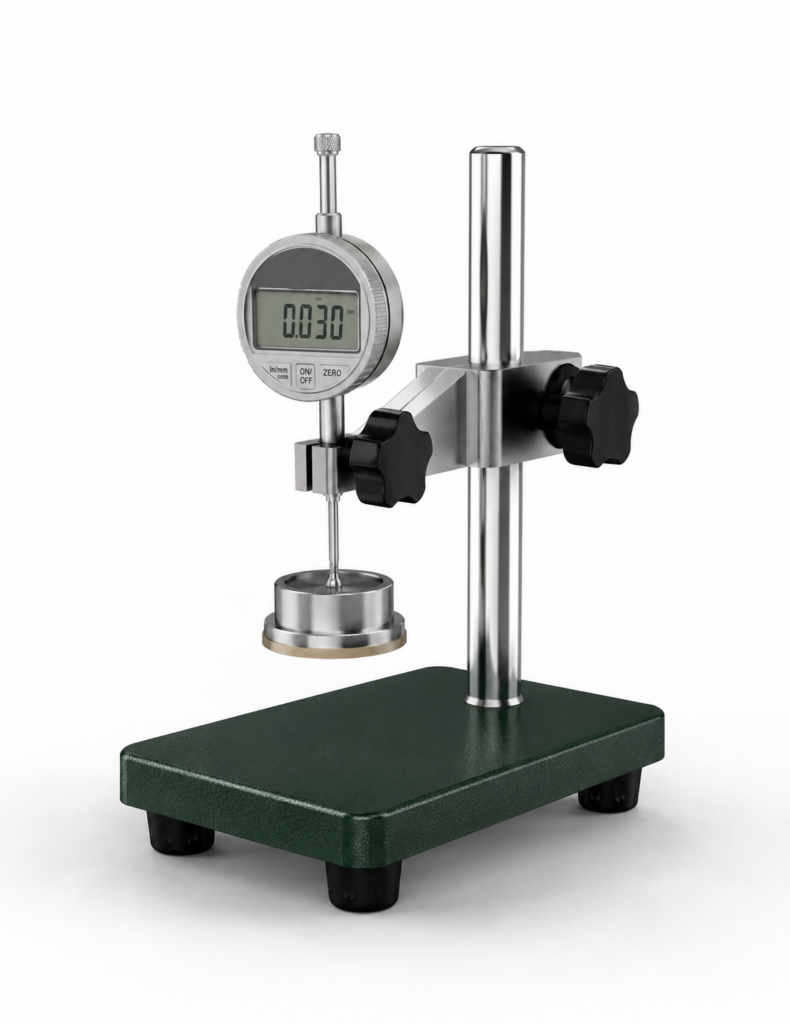

Thickness Gauge
The Hovoro Thickness Gauge is designed for accurate thickness measurement of geotextiles, woven fabrics, nonwoven fabrics, and geosynthetic materials as per IS 13162 (Part 2): 2021. The equipment provides reliable and repeatable measurement using controlled foot pressure and a precision dial indicator system. Suitable for geotechnical laboratories, manufacturers, research institutes, and quality control applications.
Key Features
Designed as per IS 13162 (Part 2): 2021
High accuracy thickness measurement
Precision dial indicator
Controlled pressure application
Suitable for geotextiles and geosynthetics
Rust-free ground surface plate
Easy and user-friendly operation
Stable and repeatable performance
Technical Specifications
Measurement Range: Up to 25 mm
Resolution: 0.001 mm
Pressure Range: 1–10 kPa
Application: Geotextile & Geosynthetic Testing
Applications
Geotechnical laboratories, geosynthetic manufacturers, research institutions, quality control laboratories

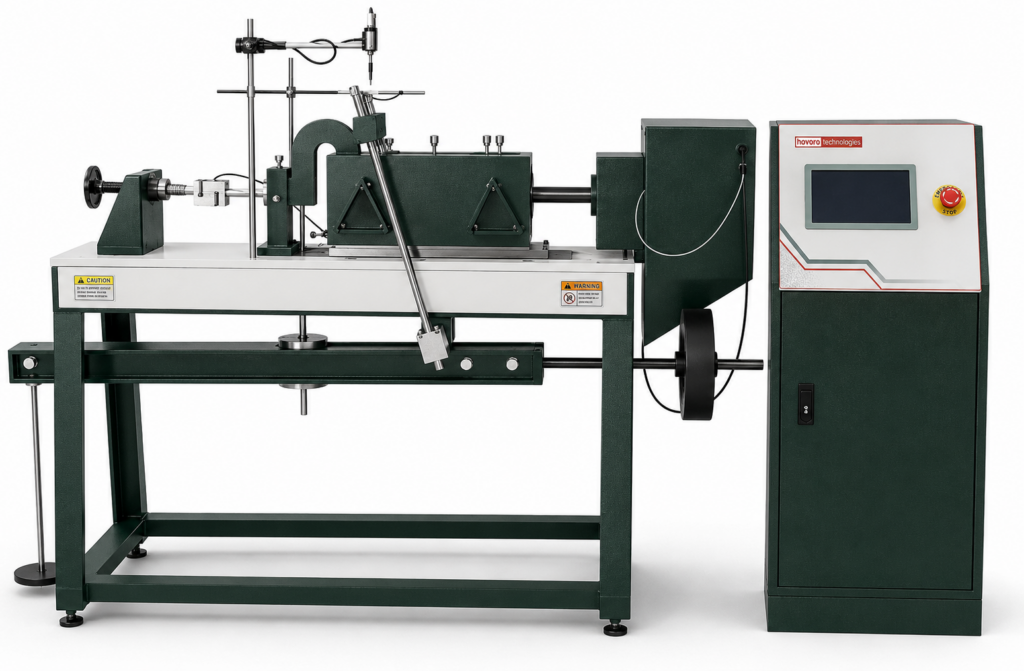

Direct Shear Testing Apparatus for Geosynthetic–Soil Interface Testing
The Hovoro Direct Shear Testing Apparatus is designed to evaluate shear resistance between soil–geosynthetic and geosynthetic–geosynthetic interfaces as per ASTM D5321 / D5321M-17. The system features precision electromechanical loading, microprocessor-based control, and real-time data monitoring for accurate interface shear testing in geotechnical applications.
Key Features
- Designed as per ASTM D5321 / D5321M-17
- Stepper motor-driven loading system
- Microprocessor-based control unit
- 7-inch HMI touch screen
- Real-time graphical monitoring
- Programmable displacement control
- High-accuracy load measurement
- CSV & Excel data export facility
Technical Specifications
- Shear Box Size: 300 × 300 × 100 mm
- Normal Load Range: 10–500 kPa
- Shear Rate: 0.00001–9.99999 mm/min
- Load Cell Capacity: 50 kN
- Horizontal LVDT: 0–100 mm
- Vertical LVDT: 0–50 mm
- Power Supply: 220V AC
Applications
Geotechnical laboratories, landfill liner testing, reinforcement studies, geosynthetic quality control, research institutions

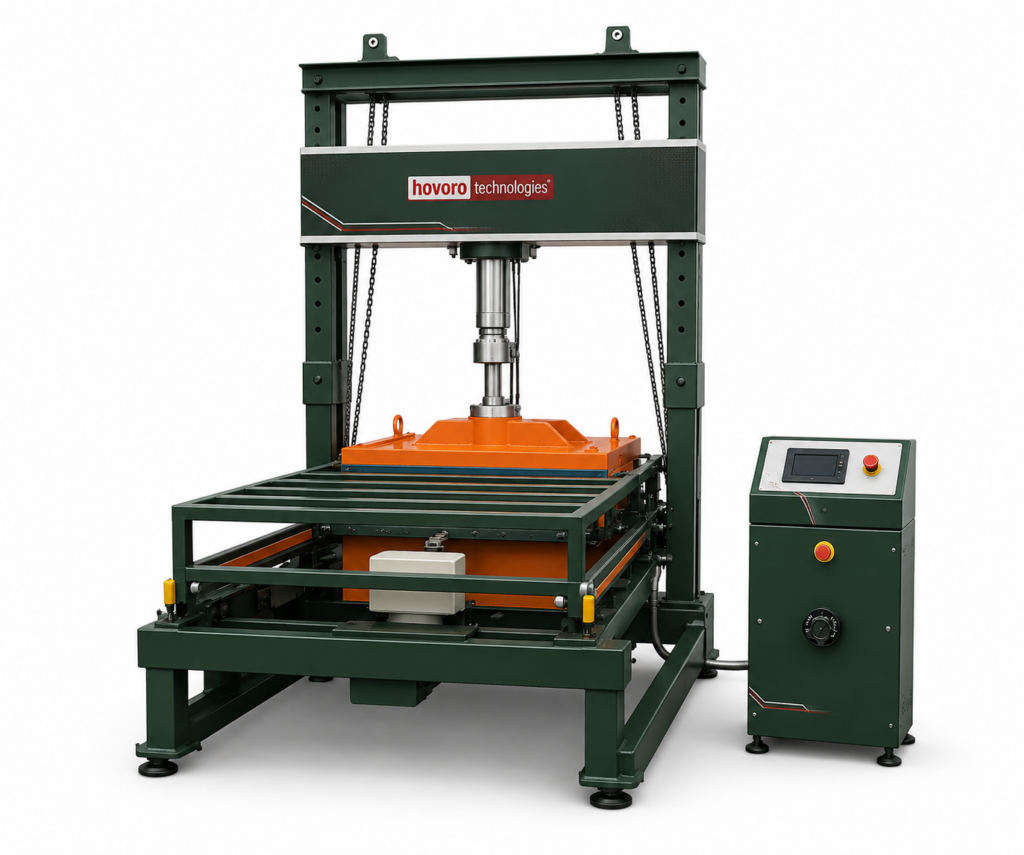

Automatic Pullout Test Apparatus for Geosynthetics
The Hovoro Automatic Pullout Test Apparatus is designed to determine pullout resistance and interface friction characteristics between soil and geosynthetics as per IS 16380 and ASTM D6706. The system uses servo-controlled horizontal loading and hydraulic normal loading for accurate and repeatable testing of geogrids, geotextiles, and reinforcement materials used in geotechnical engineering applications.
Key Features
- Designed as per IS 16380 & ASTM D6706
- Servo-controlled pullout loading system
- Hydraulic normal loading arrangement
- High-accuracy load measurement
- LVDT-based displacement monitoring
- Automatic test termination
- Overload protection system
- Graphical data analysis
Technical Specifications
- Normal Load Capacity: 250 kN
- Pullout Load Capacity: 100 kN
- Pullout Box Size: 600 × 600 × 1000 mm
- Displacement Accuracy: ±0.10 mm
- Loading System: Hydraulic
- Pulling System: Servo Motor Controlled
- Data Output: Graphical & Automatic Calculation
Applications
Geotechnical laboratories, reinforced soil studies, retaining wall design, embankment research, geosynthetic testing
Computer Controlled Electromechanical Universal Testing Machine
The Hovoro Computer Controlled Electromechanical Universal Testing Machine is designed for tensile, compression, bending, puncture, tearing, adhesion, and deformation testing of geotextiles, geogrids, geomembranes, rubber, plastics, tile adhesives, grout materials, and other engineering materials. The system uses an AC servo motor drive with precision ball screw mechanism and advanced software for accurate and repeatable testing performance. Suitable for geosynthetic industries, research laboratories, educational institutes, and quality control applications.
Key Features
- Fully computer-controlled testing operation
- AC servo motor drive system
- Precision ball screw mechanism
- Real-time Load vs Displacement graph
- Multiple testing control modes
- Automatic overload protection
- Automatic data storage and report generation
- Stable and rigid machine construction
- Automatic return to home position
- Suitable for geotextile, rubber, plastic, and tile adhesive testing

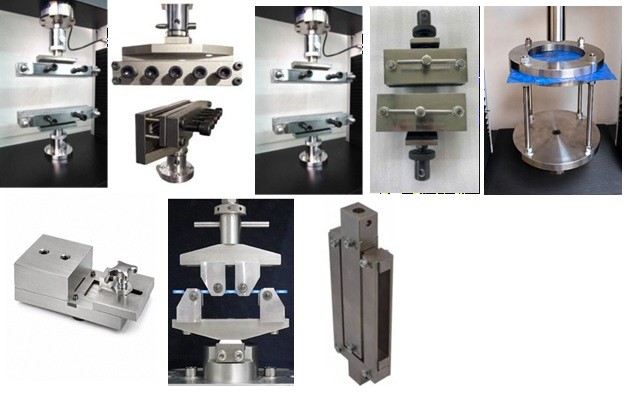

Standard Fixtures Supplied
- Grab Test Fixture
- Index Puncture Test Fixture
- CBR Puncture Fixture
- Trapezoid Tear Fixture
- Wide Width Tensile Fixture
- Geo-grid Tensile Fixture
- Compression Fixture
Technical Specifications
- Capacity Range: 5kN to 100kN
- Testing Grade: Class 1
- Load Accuracy: Better than ±0.5%
- Load Resolution: 0.001 N
- Displacement Resolution: 0.001 mm
- Speed Range: 0.01–500 mm/min
- Machine Type: Single & Twin Column
- Motor Type: Servo Motor
- Power Supply: 220V AC, 50Hz
Applications
Geotextile testing, geogrid testing, geomembrane testing, rubber testing, plastic testing, tile adhesive testing, grout testing, quality control laboratories, research institutes
Standards
IS 13162, ASTM D4632, ASTM D4833, ASTM D6241, ASTM D4533, ASTM D4595, EN 1348, ISO13007-2, ISO13007-4

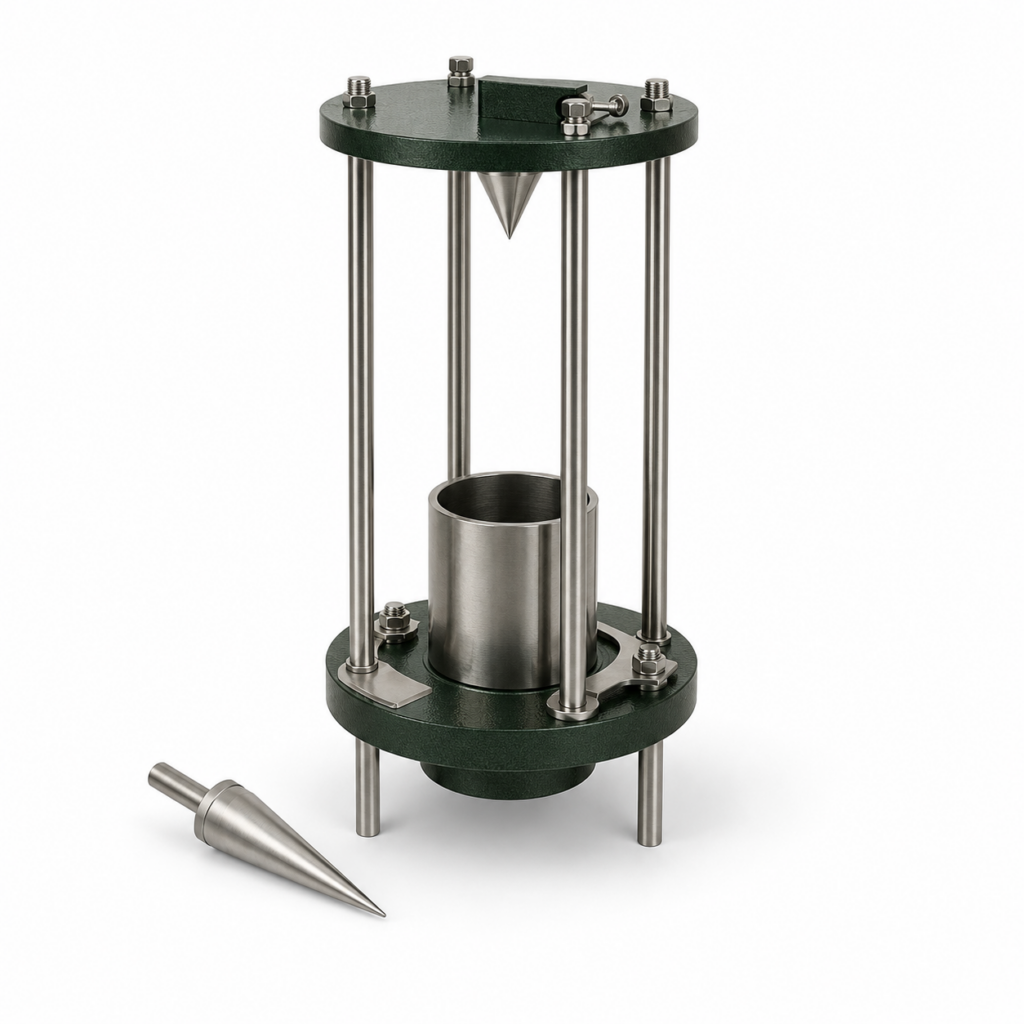

Cone Drop Test Apparatus
The Hovoro Cone Drop Test Apparatus is designed for determining puncture and installation damage resistance of geotextiles and geosynthetic materials as per IS 13162 (Part 4): 2025. The apparatus provides accurate and repeatable testing for geotechnical laboratories, research institutes, and quality control applications.
Key Features
- Designed as per IS 13162 (Part 4): 2025
- Precision 1 kg brass cone
- 45° cone angle
- Controlled drop height arrangement
- Stable and durable construction
- Easy and operator-friendly operation
Technical Specifications
- Opening Diameter: 150 mm
- Cone Weight: 1 kg
- Drop Height: 500 mm
- Cone Material: Brass
- Cone Angle: 45°
Applications
Geotextile puncture resistance and installation damage testing.

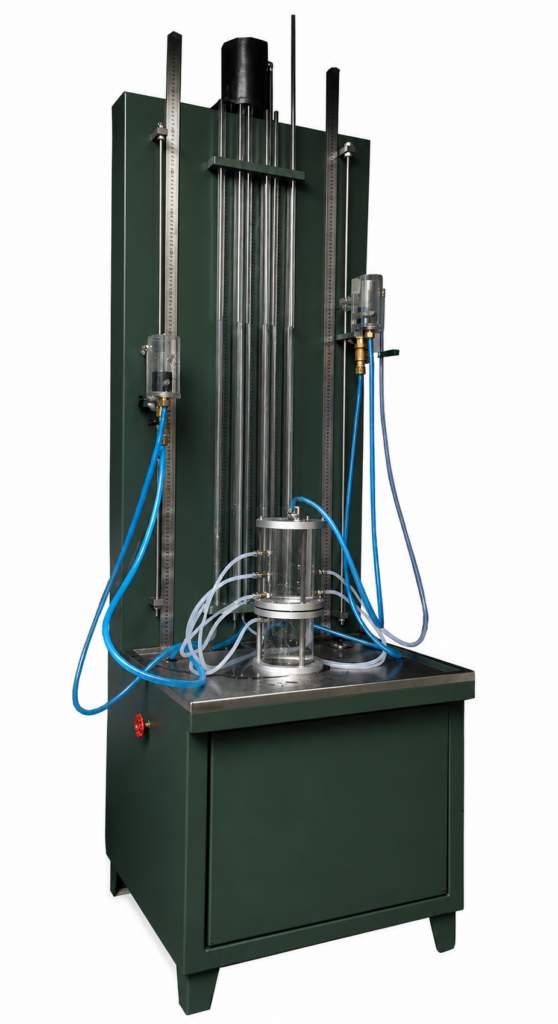

Gradient Ratio Test Apparatus (Soil–Geotextile Permeameter)
The Hovoro Gradient Ratio Test Apparatus is designed to evaluate the filtration performance, permeability, and soil retention characteristics of soil–geotextile systems as per ASTM D5101. The apparatus provides accurate and repeatable testing for geotechnical laboratories, research institutions, and geosynthetic quality control applications.
Key Features
- Designed as per ASTM D5101
- Transparent acrylic permeameter chamber
- Dual constant water head system
- Six manometer ports
- Stainless steel support screens
- Accurate hydraulic gradient measurement
- Stable and repeatable testing
Technical Specifications
- Specimen Diameter: 100 mm
- Chamber Type: Three-Piece Acrylic
- Flow Condition: Unidirectional Water Flow
- Manometer Ports: Six
- Support Screens: Stainless Steel
- Base Construction: Heavy Duty Rigid Base
Applications
Soil–geotextile compatibility, filtration studies, permeability testing, geotechnical laboratories

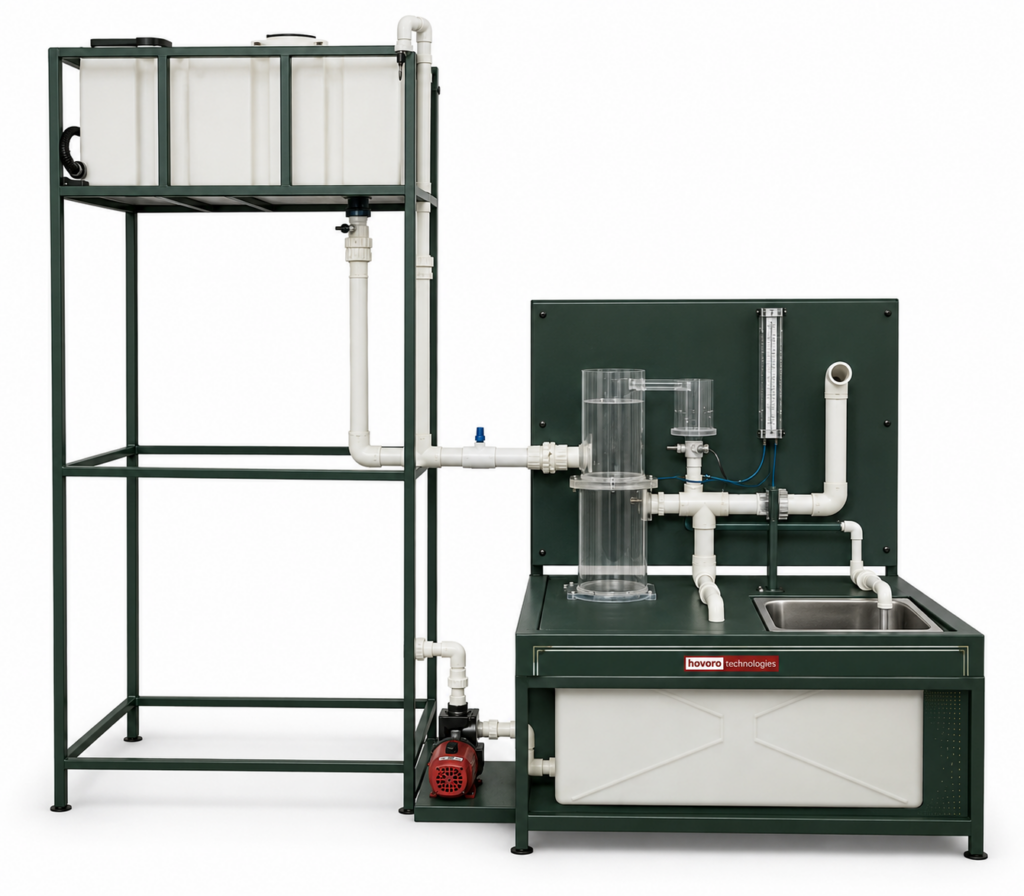

Geotextile Permeameter
The Hovoro Geotextile Permeameter is designed to determine the permeability and permittivity characteristics of geotextiles under constant head and falling head conditions as per IS 14324 and ASTM D4491. Suitable for filtration, drainage, and geotechnical testing applications.
Key Features
- Designed as per IS 14324 & ASTM D4491
- Constant head & falling head testing
- Suitable for 73 mm & 100 mm specimens
- Precision specimen holder assembly
- Accurate head measurement system
- Easy laboratory operation
Technical Specifications
- Specimen Size: 73 mm & 100 mm
- Water Tank Capacity: 100 Litres
- Test Methods: Constant Head & Falling Head
- Measurement System: Head Differential Measurement
- Power Supply: 220V AC
Applications
Geotextile permeability and filtration testing, geotechnical laboratories, research institutes

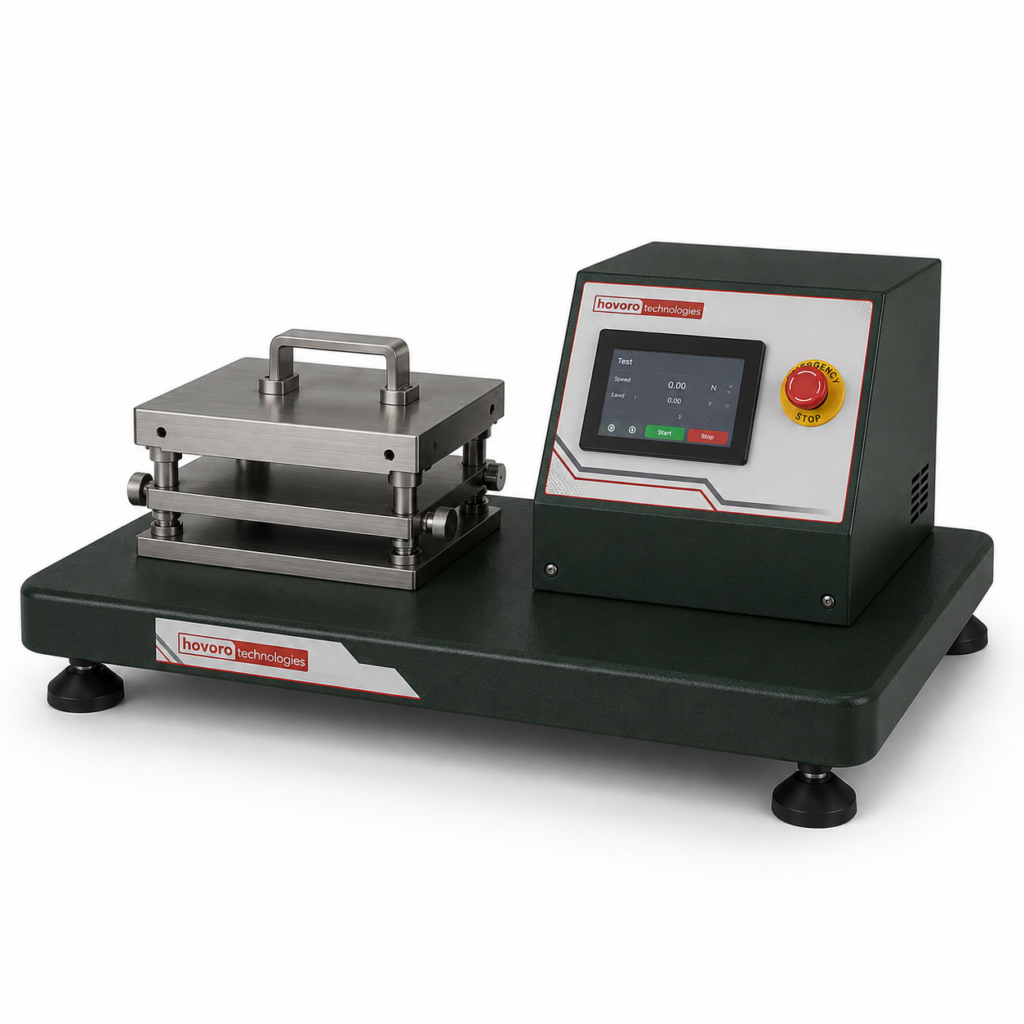

Abrasion Resistance Tester for Geotextile
The Hovoro Abrasion Resistance Tester is designed to evaluate the abrasion resistance and durability of geotextiles using the sliding block method as per IS 14714 and ASTM D4886. The apparatus provides reliable and repeatable abrasion testing for laboratory and quality control applications.
Key Features
- Designed as per IS 14714 & ASTM D4886
- Reciprocating abrasion mechanism
- Adjustable stroke count
- Digital cycle counter
- Stainless steel construction
- Stable and repeatable testing
Technical Specifications
- Abrasion Area: 50 × 200 mm
- Plate Speed: 90 CPM
- Stroke Length: 25 ±1 mm
- Applied Load: 6 ±0.01 kg
- Counter Range: 1–9999
- Power Supply: 220V AC
Applications
Abrasion resistance testing of geotextiles and geosynthetic materials

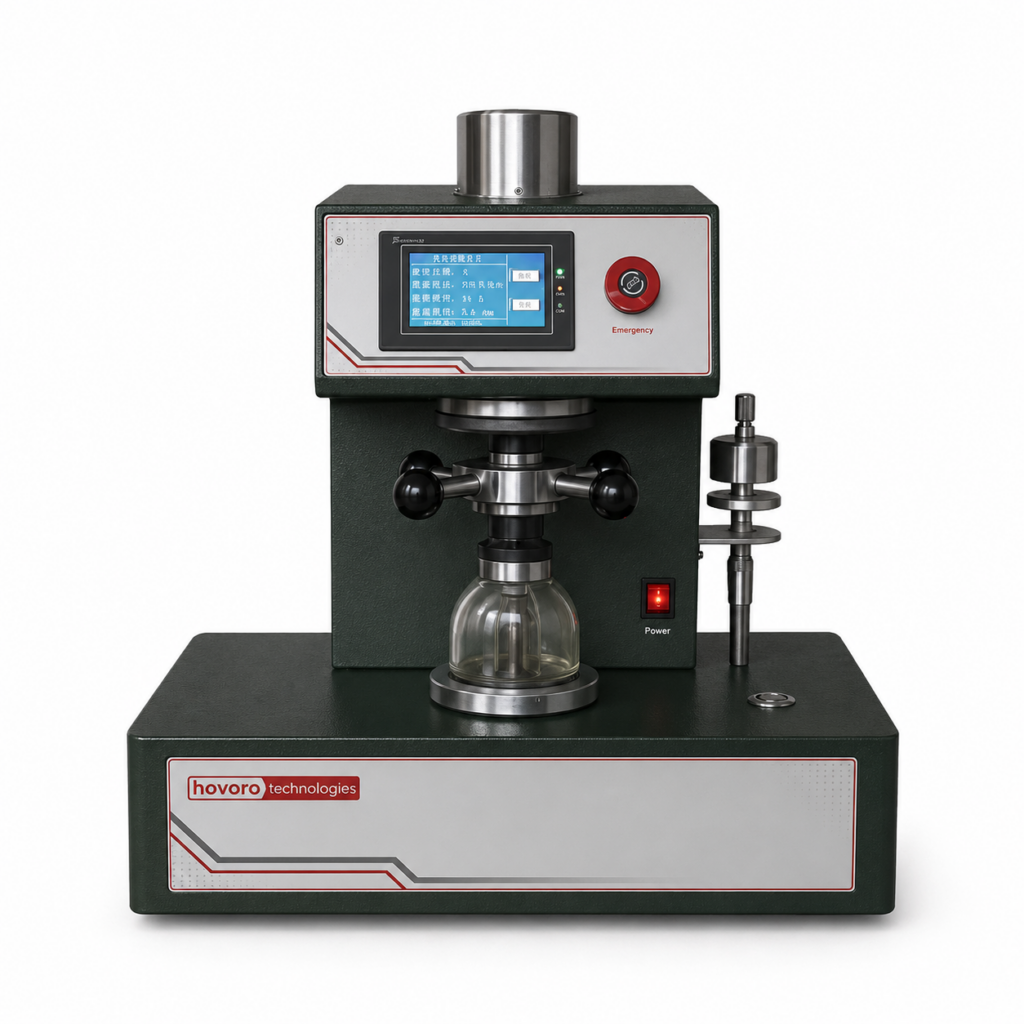

Bursting Strength Tester – Hydraulic Method
The Hovoro Bursting Strength Tester is designed to determine bursting strength and bursting distension of fabrics, textiles, and geosynthetic materials using hydraulic pressure as per IS 1966, ISO 13938-1, and ASTM D3786. The system provides accurate and reliable bursting strength measurement for laboratory and quality control applications.
Key Features
- Designed as per IS 1966, ISO 13938-1 & ASTM D3786
- Hydraulic pressure testing method
- Digital touch panel display
- Automatic data storage facility
- High accuracy pressure measurement
- Durable and robust construction
Technical Specifications
- Pressure Range: 0–6000 kPa
- Pressure Accuracy: ±1%
- Resolution: 0.1 kPa
- Maximum Bursting Height: 35 mm
- Display Type: Digital Touch Panel
- Power Supply: 220V AC
Applications
Textile testing, geosynthetic testing, quality control laboratories, research institutes

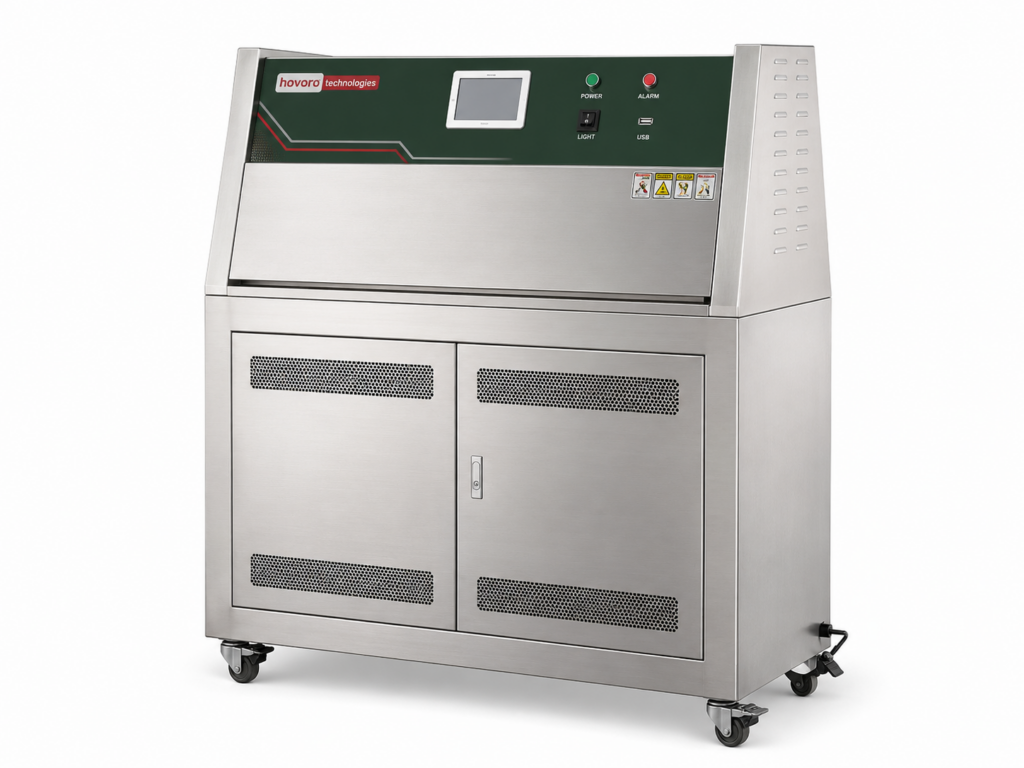

Ultra Violet (UV) Aging Test Chamber
The Hovoro Ultra Violet (UV) Aging Test Chamber is designed to simulate UV sunlight, moisture, condensation, and rain conditions for accelerated weathering and durability testing of geotextiles, plastics, rubber, coatings, and engineering materials as per ASTM D4329, ISO 4892-3, and ISO 11507. Suitable for research laboratories, industrial testing, and quality control applications.
Key Features
- Designed as per ASTM D4329, ISO 4892-3 & ISO 11507
- Accelerated UV weathering simulation
- Fluorescent UV lamp exposure system
- 7-inch programmable touch screen controller
- Irradiation, condensation & spray modes
- Precise temperature and humidity control
- USB data logging facility
- Automatic water spray system
Technical Specifications
- Temperature Range: RT +10°C to 70°C
- Humidity Range: ≥93% RH
- Irradiance Range: 0.35 – 1.0 W/m²
- Lamp Type: UVA-340
- Number of Lamps: 8 Nos.
- Lamp Power: 40 W Each
- Control System: Programmable LCD Controller
- Power Supply: 220V AC, 50Hz
Applications
UV aging, weather resistance, durability testing, geotextile testing, polymer and coating testing.
