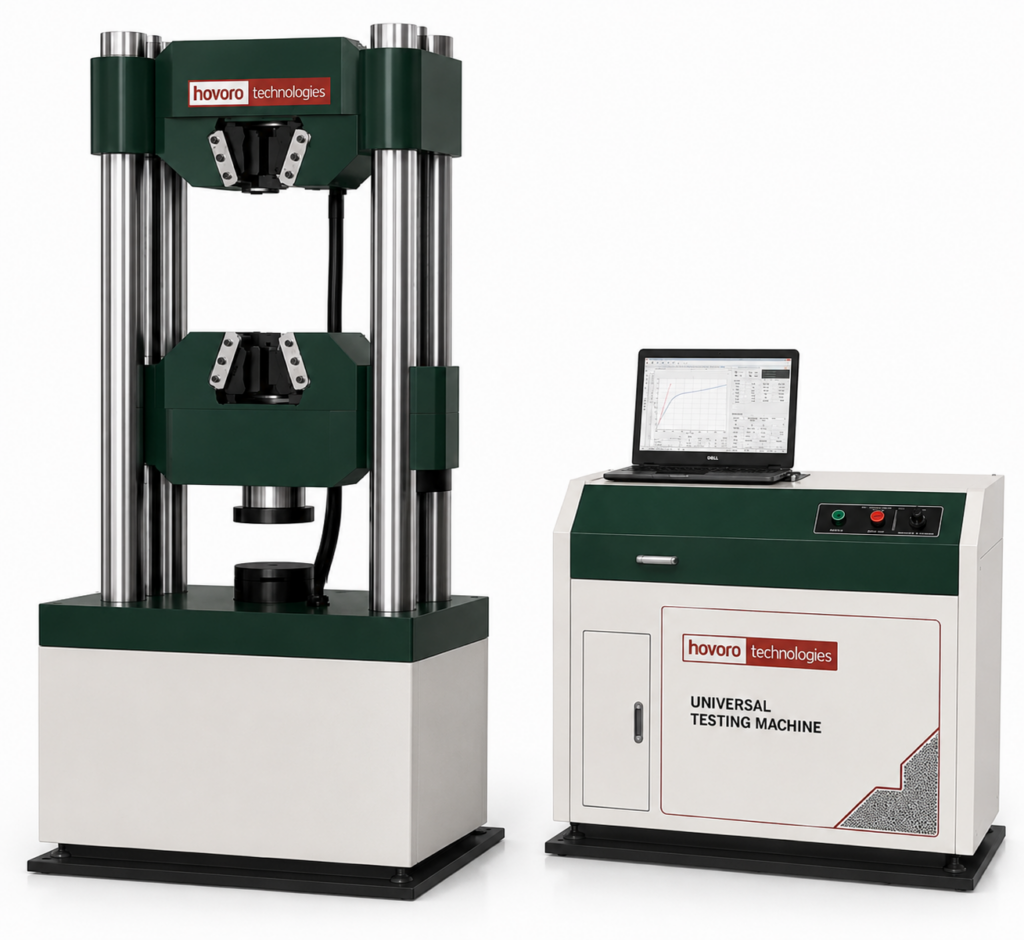

Automatic Universal Testing Machine (Servo Hydraulic UTM)
The Hovoro Automatic Universal Testing Machine is a servo-controlled hydraulic testing system designed for tensile, compression, bending, shear, and flexural testing applications. The machine offers high accuracy, stable load control, and reliable performance for industrial laboratories, steel plants, research institutions, and quality control facilities. Built with a rigid 6-column load frame and advanced software, the system ensures precise and repeatable test results.
Key Features
- Servo hydraulic closed-loop control
- Load & displacement controlled testing
- Heavy-duty 6-column frame
- Hydraulic gripping system
- Real-time graphical analysis
- Automatic report generation
- High accuracy and repeatability
- Compatible with multiple test fixtures
Technical Specifications
- Capacity: 600kN to 2000kN
- Accuracy: ±1%
- Control Mode: Load & Displacement
- Ram Stroke: Up to 300 mm
- Load Resolution: Up to 0.01 kN
- Extensometer Resolution: 0.001 mm
- Power Supply: 415V AC
Applications
Steel testing, construction laboratories, metallurgy labs, educational institutes, R&D centers
Standards
IS 1608, ASTM A370, ASTM E8/E8M, IS 1786

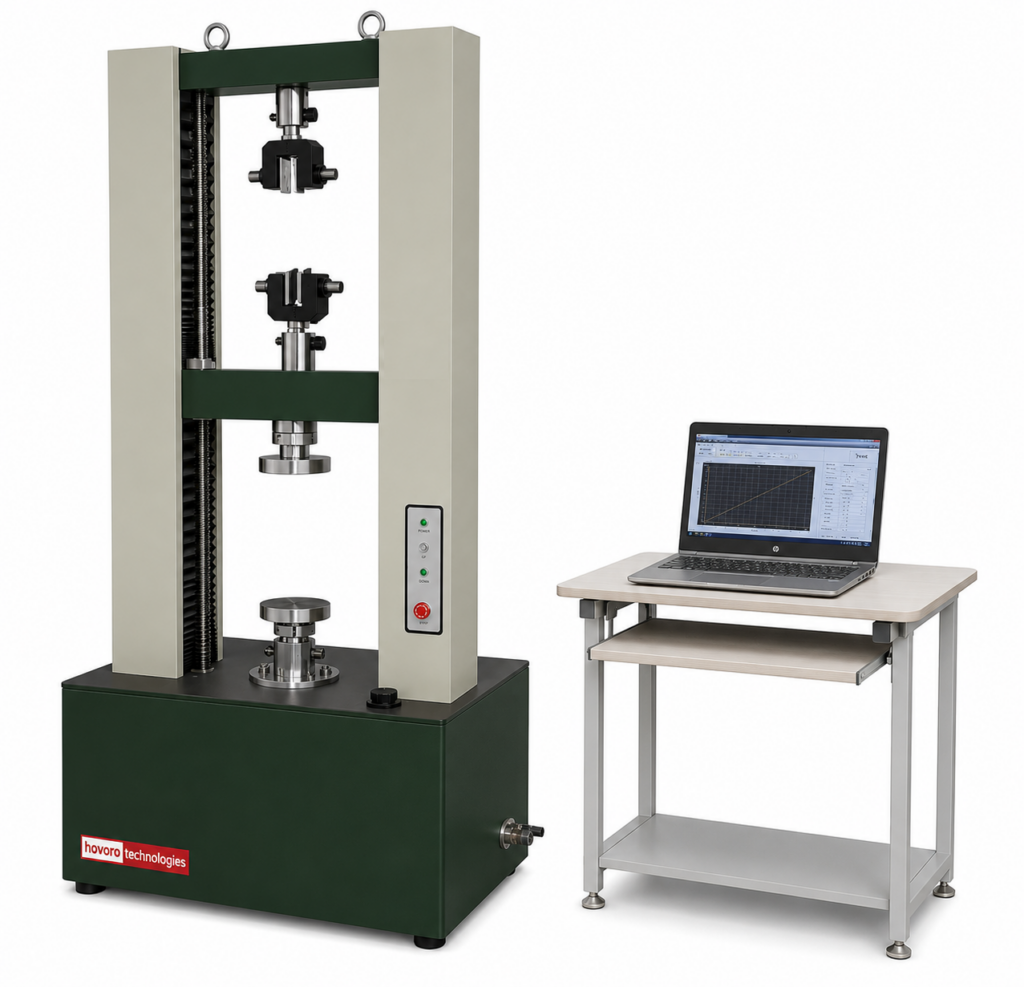

Computer Controlled Electromechanical Universal Testing Machine
The Hovoro Electromechanical Universal Testing Machine is designed for tensile, compression, peel, tear, adhesion, flexural, and deformation testing of metals, plastics, geotextiles, rubber, composites, tile adhesives, and construction materials. The machine uses a precision servo motor drive system with advanced computer-controlled software for accurate and repeatable testing performance.
Key Features
- Fully computer-controlled operation
- Precision ball screw mechanism
- Servo motor driven system
- Real-time graph display
- Automatic data storage
- Multiple testing modes
- Automatic overload protection
- User-friendly software
Technical Specifications
- Capacity: 5kN to 300kN
- Testing Grade: Class 1
- Accuracy: Better than ±0.5%
- Speed Range: 0.01–500 mm/min
- Load Resolution: 0.001 N
- Displacement Resolution: 0.001 mm
- Power Supply: 220V AC
Applications
Geotextile testing, tile adhesive testing, polymer testing, rubber testing, QC laboratories
Standards
ASTM, ISO, EN, BIS, BS Standards

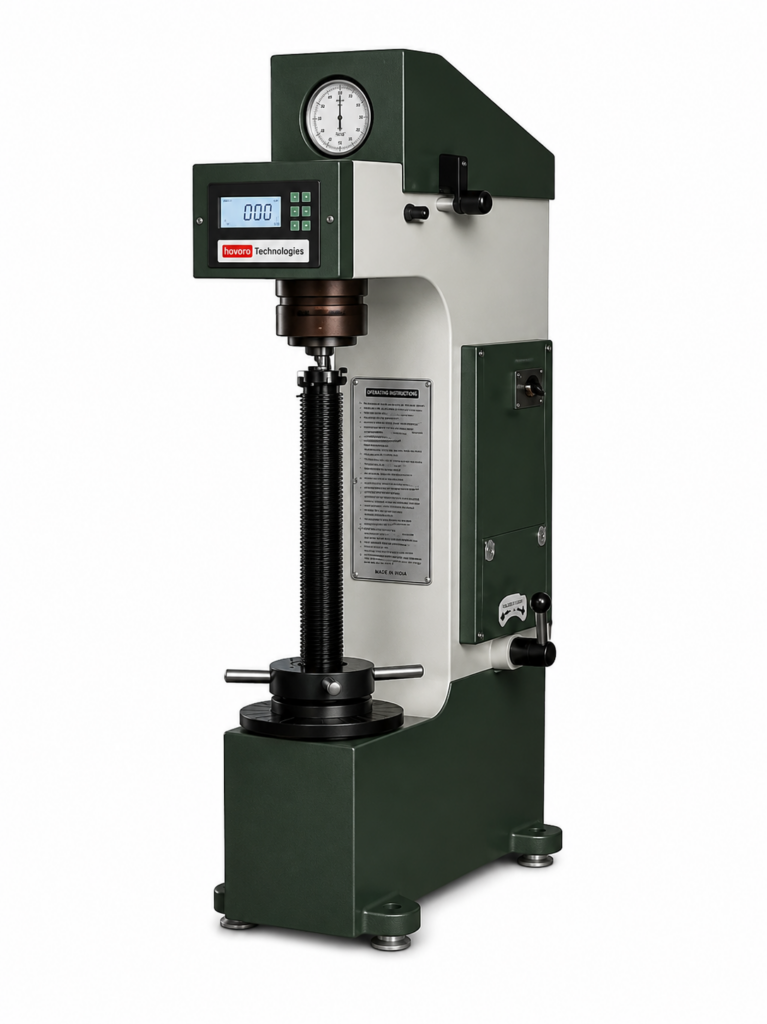

Brinell cum Rockwell Hardness Tester
The Hovoro Brinell cum Rockwell Hardness Tester is designed for hardness testing of metallic materials using Brinell and Rockwell methods. The machine supports HRA, HRB, and HRC scales and provides reliable hardness measurement with simple operation and durable construction.
Key Features
- Brinell & Rockwell testing
- HRA, HRB & HRC scales
- Quick load selection
- Direct analogue reading
- Stable and reliable operation
- Suitable for hard & soft metals
Technical Specifications
- Rockwell Loads: 60, 100, 150 kgf
- Brinell Load: 187.5 kgf
- Vertical Space: 230 mm
- Throat Depth: 155 mm
- Display Type: Analogue
- Power Supply: 220V AC
Applications
Metallurgy labs, steel industries, heat treatment shops, educational institutes
Standards
IS 1586
Digital Fatigue Testing Machine
The Hovoro Digital Fatigue Testing Machine is designed for fatigue and endurance testing of metallic materials under reversed bending loading conditions. The system provides accurate cyclic loading and repeatable fatigue performance analysis for research and industrial testing applications.
Key Features
- Reversed bending fatigue testing
- Digital cycle counter
- Compact tabletop design
- High-speed rotation mechanism
- Easy load adjustment
- Stable and reliable operation
Technical Specifications
- Maximum Bending Moment: 200 kg-cm
- Speed: 4200 rpm
- Accuracy: ±1%
- Counter: 8 Digit
- Specimen Diameter: 8 mm
- Power Supply: 415V AC
Applications
Automotive industries, R&D laboratories, educational institutes, QC labs
Standards
IS 5075

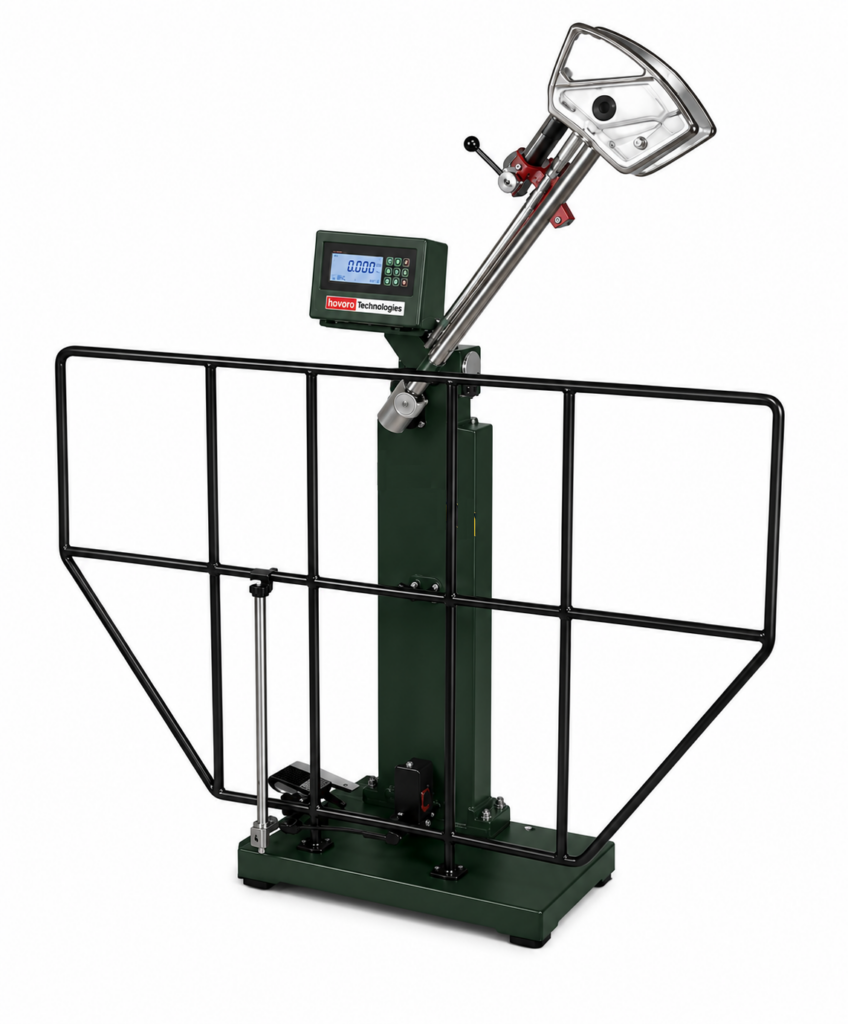

Digital Impact Testing Machine
The Hovoro Digital Impact Testing Machine is used for determining the impact strength and toughness of materials using Izod and Charpy testing methods. The machine delivers accurate energy measurement with excellent repeatability for industrial and laboratory applications.
Key Features
- Izod & Charpy testing
- Digital energy indication
- Adjustable pendulum arrangement
- Interchangeable striker system
- Accurate impact measurement
- Robust construction
Technical Specifications
- Impact Energy: 294 J
- Pendulum Angle: 140°
- Least Count: 0.01 J
- Hammer Axis Distance: 825 mm
- Striking Edge Angle: 30°
- Support Distance: 40 mm
Applications
Material testing laboratories, educational institutes, industrial QC facilities
Standards
IS 3766

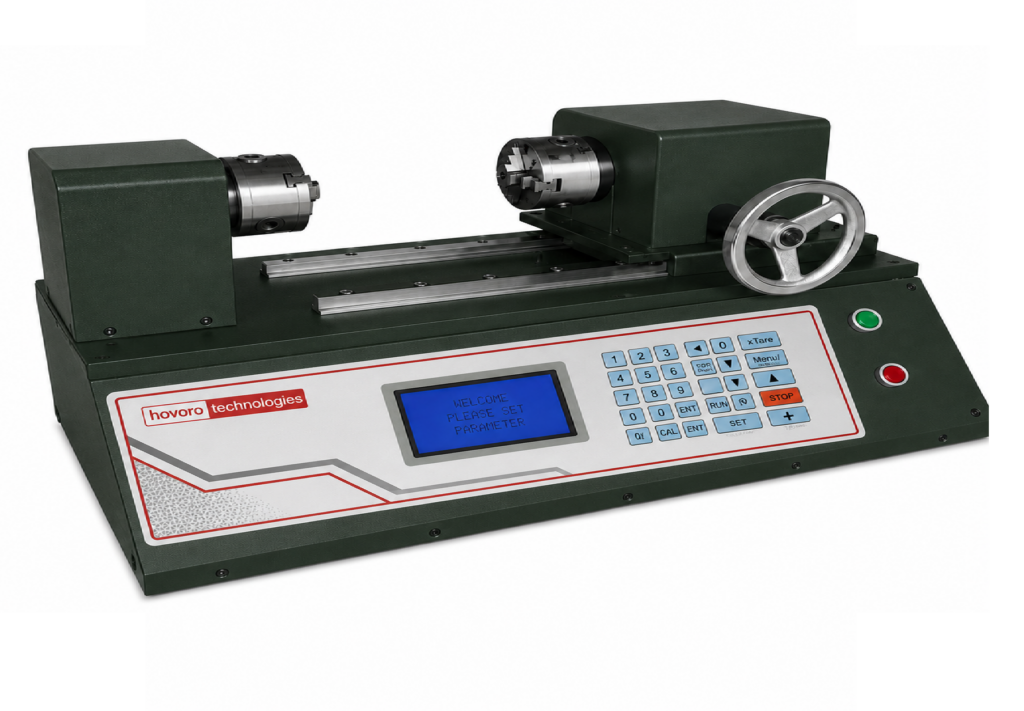

Digital Torsion Testing Machine
The Hovoro Digital Torsion Testing Machine is designed for determining torsional properties of metallic and non-metallic materials under controlled twisting loads. The system measures torque and angular displacement with high accuracy and software-based graphical analysis.
Key Features
- Digital torque measurement
- Real-time graphical display
- Windows-based software
- High accuracy load cell
- Data export facility
- Strong and durable construction
Technical Specifications
- Capacity: 100 Nm
- Least Count: 0.1 Nm
- Accuracy: ±1%
- Grip Clearance: 270 mm
- Data Communication: RS232
- Power Supply: 440V AC
Applications
Engineering labs, research institutes, educational laboratories
Crushing Strength Testing Machine for Iron Ore Pellets
The Hovoro Crushing Strength Testing Machine is designed for determining the crushing strength of iron ore pellets under compressive loading conditions. The machine provides accurate load measurement and repeatable testing performance for steel plants and pellet manufacturing industries.
Key Features
- Precision load cell system
- Digital load indication
- Peak load hold facility
- Controlled loading rate
- Automatic stop after failure
- Compact industrial design
Technical Specifications
- Capacity: 10 kN
- Loading Rate: 15 ±5 mm/min
- Display Type: Digital
- Peak Load Hold: Available
- Load Cell: Precision 10 kN
- Automatic Stop: Available
Applications
Steel plants, iron ore industries, QC laboratories
Standards
ISO 4700, ASTM E382
