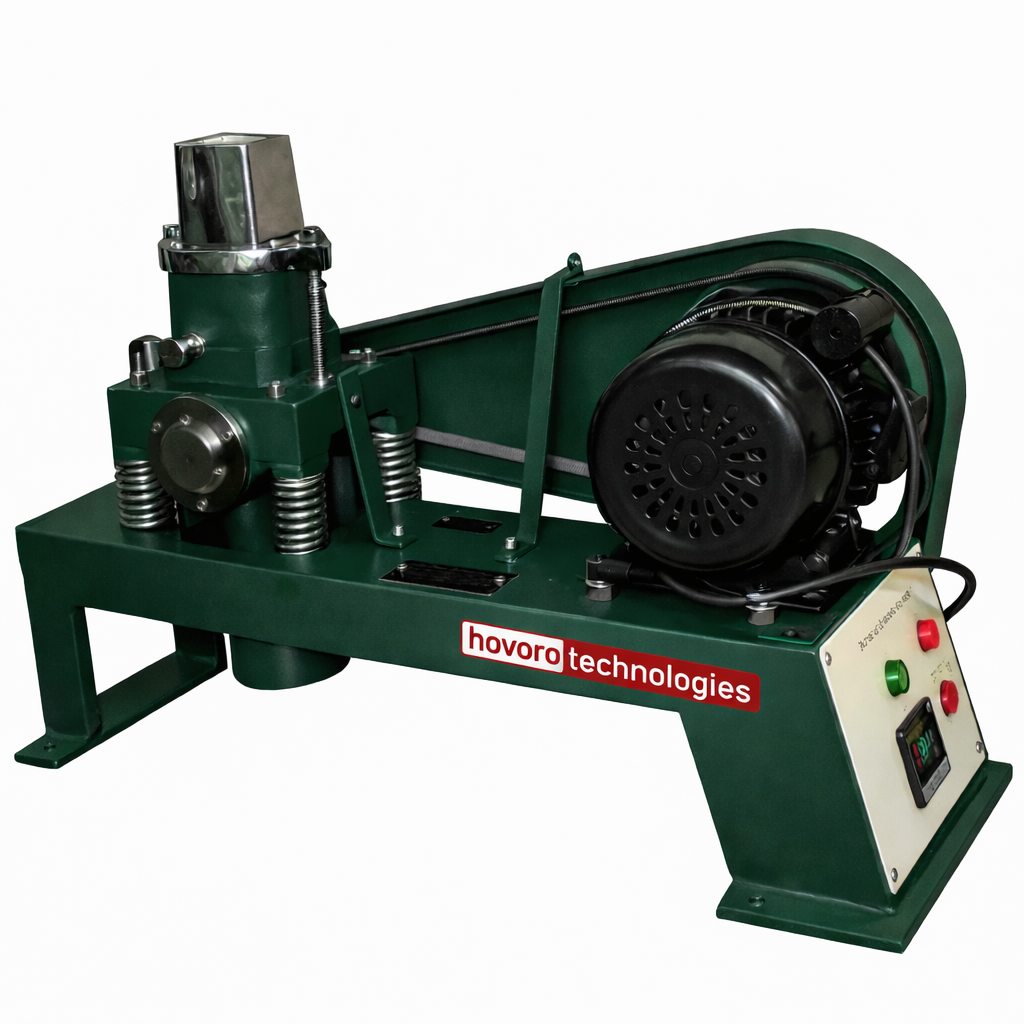

Vibration Machine
Ref. Standard – IS:4031, IS:10080, EN 196-1 413-2, EN 13454-2
A specially designed Vibration Machine is used for vibrating the mix in moulds at a frequency of 12,000 ± 400 cycles per minute, as per specifications.
The Vibrator is mounted over coiled springs and the vibrations are developed by means of a revolving eccentric shaft. The centre of gravity of the vibrator, including the cube and mould, is either at the centre of the eccentric shaft or within 25mm below it. The simple design of the machine facilitates easy assembly and dismantling of the cube moulds. Each machine is supplied AIM 414 one cube mould with ISI Certification Mark and poking rod.
Suitable for operation on 220V, 50Hz, Single Phase, AC supply.

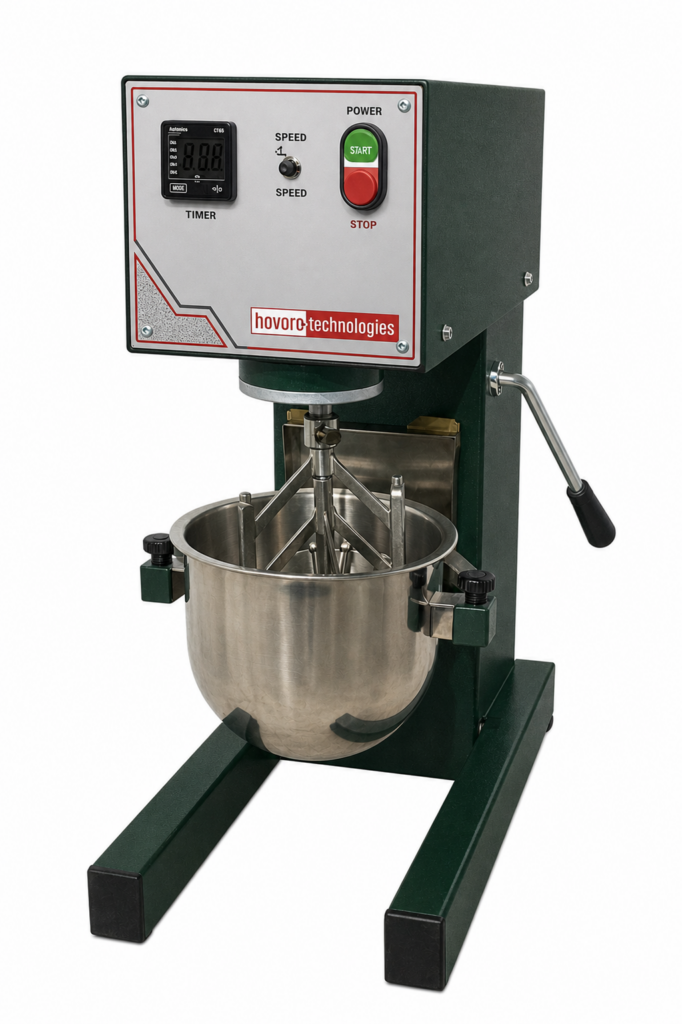

Automatic Mortar Mixer
Ref. Standards IS: 2250-1981
Automatic/Manual Mortar Mixer, 4.75 litre nominal capacity (Bowl)
Application: Preparation of standard prisms with Automatic/Manual mixing procedure in accordance with IS:10890, EN 196-1 & EN 196-3
This apparatus has specially been designed to prepare cement mortar for strength determination as specified in IS:4031. It can also be used in mixing lime with pozzolonic materials for determination of lime reactivity (as per IS: 1727) and for uniform mixing of soils with additives such as lime, cement, etc.
Special Features :
- Microprocessor Control
- Automatic or Manual modes
- Choice of automatic mixing cycles as per EN Standard
- User defined Mixing cycle
- Sand Dispenser
- Water Burette
Low Speed: 140 RPM
High Speed: 285 RPM
Standard Supply includes:
Basic unit with stainless steel mixing bowl and paddle, Program controller with status indicators to run the Mixer in fully Automatic or Manual mixing mode.
Suitable for operation on 220V, 50Hz, single phase, AC supply.
Tube Sampler for packaged Cement
IS : 3535-1966, (ASTM C-183)
HC 35.05
It is used for sampling of cement from bags and consists of a brass tube approximately 28 mm inside diameter. It carries wooden handle at one end and is bevelled at the other end. An air hole is provided near the handle. The volume of the sampling tube is approximately 300cc. and it can collect approximately 750g of cement in one operation.
Slotted Tube Sampler for Bulk Cement
IS : 3535-1966, (ASTM-183)
HC 35.10
These samplers are used for sampling of cement from wagons and from ship’s hold.
The sampler consists of two telescopic brass tubes with slots along their lengths. The slots can be opened for collecting the sample and then closed by rotating the inner tube. The tube has a conical end for easy penetration. These samplers are between 1.5 to 1.8 m long with about 35 mm O.D for sampling from ship’s hold and can be used up to 2m depth.
These are about 60 cm in length when required to be used for sampling from wagons.
