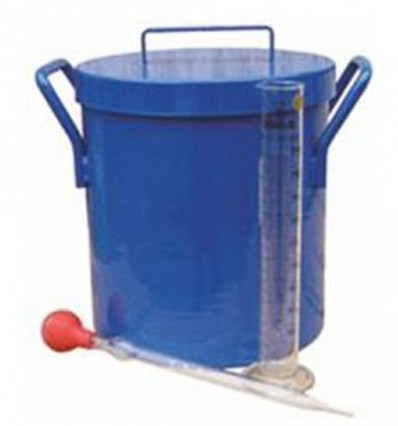

Bleeding Of Freshly Mixed Concrete
ASTM C 232; EN 480-4
Used for determination of the relative quantity of mixing water that will bleed from a sample of freshly mixed concrete

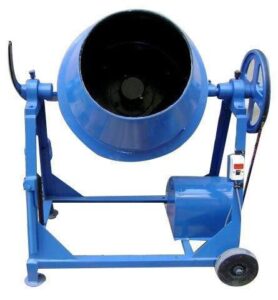

Laboratory Concrete Mixer (Motorised)
A Concrete and mortar mixer for light professional and DIY use. Designed to give reliable service with low maintenance requirements. The compact storage size makes the Mixer a convenient product for DIY users.
Advantages:
- Light and effective the Mixer mixes a full barrow load
- Compact enough to be transported in the boot of car
- Supplied complete with stand
- Direct drive for increased reliability
- Full thermal overload protection
- 230 V, AC Single Phase
- Drum capacity: 100 Ltrs.

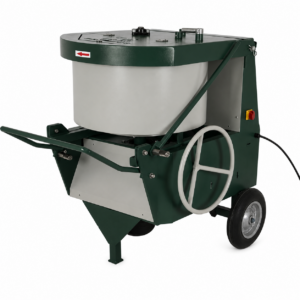

Concrete Mixer Pan Type - 40 Liter
Ref. Standard – IS:1791:1985
The Concrete Mixer has been designed for mixing small quantities of concrete used in preparation of concrete cubes, for testing in laboratories. The purpose of the mixer is to smear mechanically the aggregate surface with cement paste uniformly & produce a mix of uniform consistency. This in turn gives consistent quality of cube specimens when casted in the moulds.
The Concrete Mixer developed is transportable on wheels. The design of mixing paddles ensure uniform & efficient mixing of cement & aggregate both in dry & wet conditions. This machine is suitable for aggregate size upto 20mm. The equipment can also be put to use for mixing of any other material in dry / wet conditions. The arrangement helps the operators to access the pan contents conveniently & emptying the mixture after completion of the operation. The drum is driven off the ribbed base. The lid with mixing paddles clears off the top of the drum to provide maximum access to the operator.
Specifications :
Mixing Capacity: 40 ltrs.
Overall Dimension: 910mm X 875 mm X 1250mm
Motor: 2 HP
Pan RPM: 24 RPM
Special Features :
- Portable & Compact
- Adjustable Blades
- Simple to clean & maintain
- Easy to operate
Suitable for operation on 440V, 50Hz, Three Phase, AC supply
Concrete Mixer, Tilting Pan Type with Hydraulic Tilting Arrangement
Ref Std.: IS: 1791:1985
The Concrete Pan Mixer has been designed for mixing small quantities of concrete used in preparation of concrete cubes, for testing in laboratories. The purpose of the mixer is to smear mechanically the aggregate surface with cement paste uniformly & produce a mix of uniform consistency. This in turn gives consistent quality of cube specimens when casted in the moulds.
The Concrete Pan Mixer (Tilting type) developed is transportable on wheels. The design of mixing paddles ensure uniform & efficient mixing of cement & aggregate both in dry & wet conditions. This machine is suitable for aggregate size upto 20mm. The equipment can also be put to use for mixing of any
other material in dry & wet conditions. The arrangement helps the operators to access the pan contents conveniently & emptying the mixture after completion of the operation.
The pan is made of heavy duty abrasion resistance metal with 10 mm thick bottom & 8 mm thick side wall. The drum is driven off the ribbed base. The lid with mixing paddles clears off the top of the drum to provide maximum access to the operator.
Special Features :
- Simple to clean & maintain
- Virtually Noise free (Very low noise) while running on full capacity
- Normal vibration
- Easy to operate
Suitable for operation on 440V, 50Hz, Three Phase, AC supply
Tamping Rod
IS 516, ASTM C-29, C-31, C-57, C-138, C-192 AASHTO T-29 & T-23
Specification: This is used for compacting concrete into cube moulds. This rod is made of steel it is 16 mm dia., 600 mm in length and rounded at both ends.
Tamping Bar
Specification:
This is used for compacting concrete into cube moulds. This rod is made of steel bar it is 25 mm square x 380 mm long with handle.
Straight Edge
Used to remove excess material when molding cube and cylinder specimens. Conduction slump cone and air meter tests. Flat bar made from steel.
- 1″ X 12″ (2.5 X 30.4CM)
Verification Of Flatness, Perpendicularity, Straightness And Dimension Of Moulds And Specimens
ISO 1101 EN 12390-1
The appendix of EN 12390-1 Standard calls for a set of instruments to be used for dimensional and tolerance verification of the mould and the specimens got from the same.
