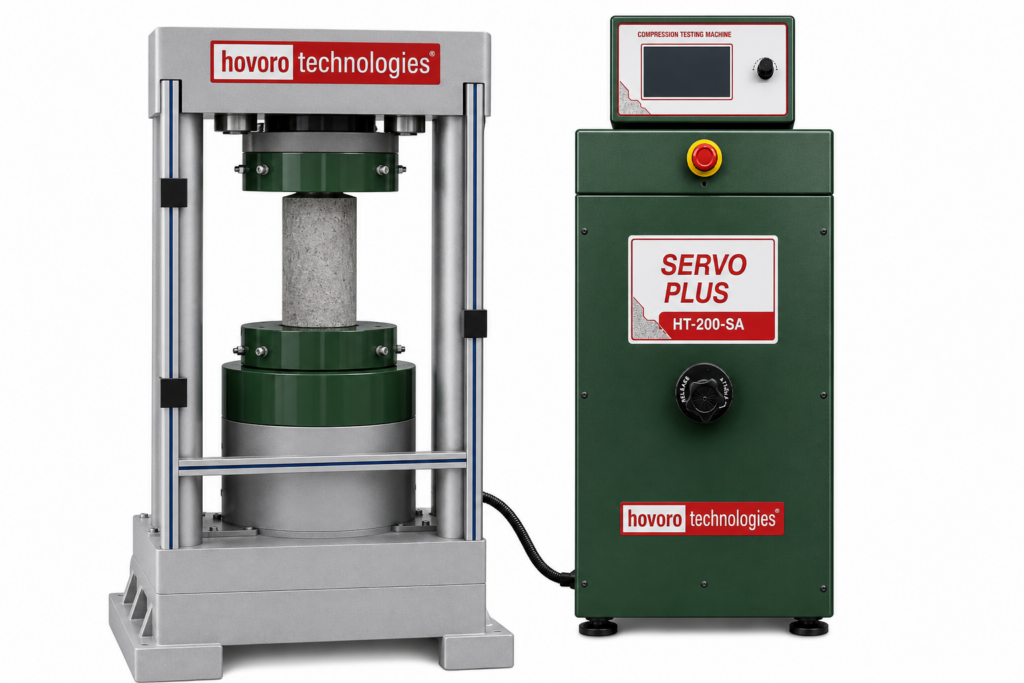

Automatic Compression Testing Machine
Ref. Standard: IS: 516, ASTM C39 & IS: 14858 (2000)
The Servo Controlled Compression Testing Machine delivers high-accuracy compressive strength testing with fully automatic pace rate control. Built with a heavy-duty frame, silent hydraulic pump, PLC and HMI touch display, it ensures repeatable results, fast operation and maximum safety for concrete, cement and building materials
Key Features
- Fully automatic servo load control for precise pace rate
- 7” touch-screen controller with USB data storage
- Automatic pump control with shutdown under limit conditions
- PID feedback control for highest repeatability
- Silent & energy-efficient servo motor powered pump
- Over-travel & overload protection for maximum safety
- Hardened precision platens with self-alignment
- Compatible with flexural & split tensile attachments (optional)
Capacity Range (Models Available)
50 kN, 100 kN, 250 kN, 500 kN, 1000 kN, 2000 kN, 3000 kN, 5000 kN

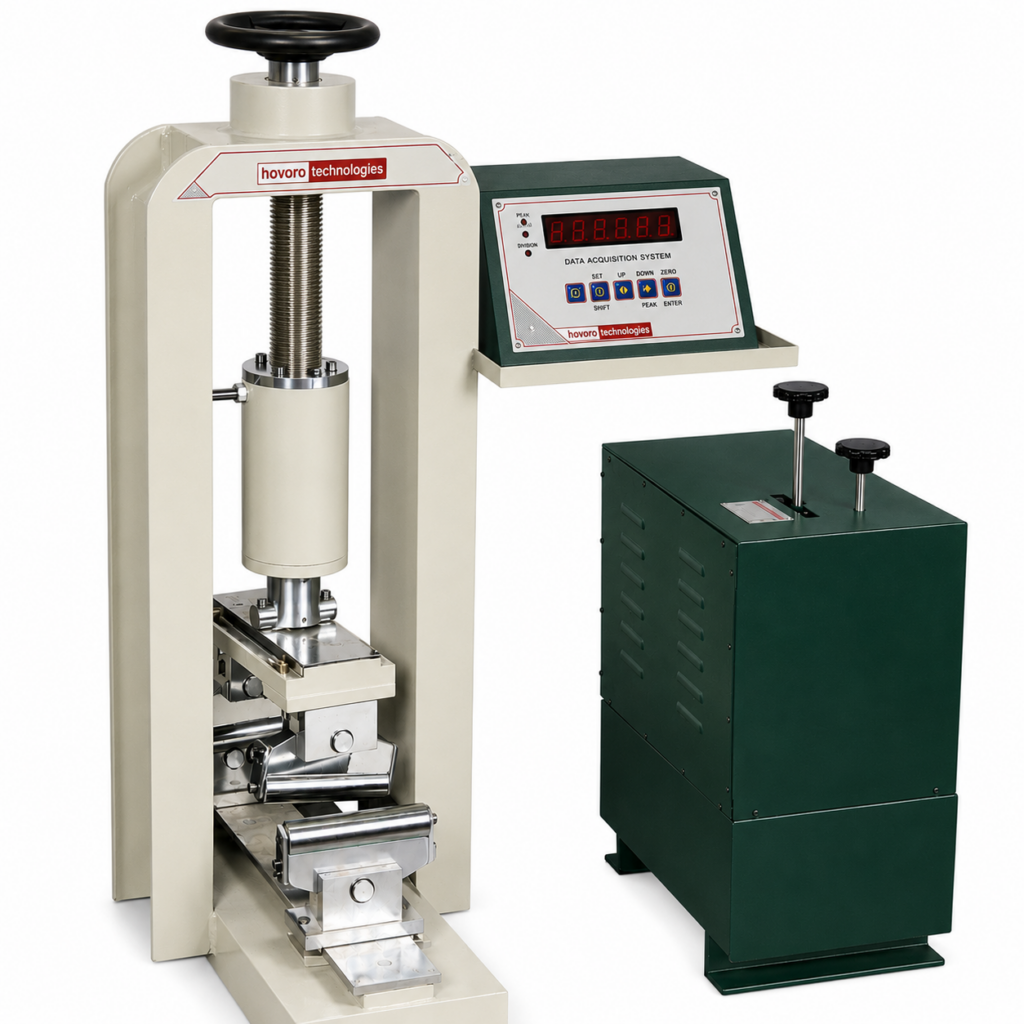

Flexural Testing Machine
Ref. Standard: IS 516 (Part 1/Sec 1): 2021, IS 9399:1979 (Reaffirmed 2013), BS 1881, and ASTM C78
The Flexural Testing Machine (Beam Testing Machine) is designed for determining the flexural strength of concrete beams using the third-point loading method.
Key Features
- 100 kN capacity robust load frame
- Suitable for standard beam sizes (150×150×700 mm & 100×100×500 mm)
- Adjustable lower and upper rollers for accurate third-point loading
- Motorized hydraulic pumping unit for smooth operation
- Microprocessor-based digital load indicator cum controller
- Direct display of:
- Applied load (kN)
- Flexural strength (N/mm²)
- Compressive strength (kg/cm²)
- Peak hold facility
- Memory storage for last 20 readings
- Rate of loading measurement feature
- Automatic internal calibration
- Overload protection with safety cut-off
- Password-protected calibration
- Easy-to-use front panel with ON/OFF switch and loading control lever
Ordering Information
HT-133 Flexural Testing Machine (Beam Testing Machine), 100 kN capacity
